Electric Motorized Double Eccentric Butterfly Valve
A. The Electric Motorized Double Eccentric Butterfly Valve features a double eccentric design for improved sealing performance.
B. It is equipped with a motorized actuator that allows for precise and automated valve operation.
C. This valve is suitable for various industrial applications, providing reliable flow control and efficient performance.
Description
Enhance industrial flow control systems with HEYUE high-performance Electric Motorized Double Eccentric Butterfly Valve, engineered for precision, durability, and exceptional sealing performance. This valve combines advanced mechanical design with electric actuation to deliver unmatched reliability in demanding applications.
Key Features:
Double Eccentric Design: Reduces friction on the sealing ring, minimizing wear and extending service life.
Robust "T"-Type Disc Structure: Ensures linear sealing contact for zero leakage and tight shut-off.
Easy Maintenance & Versatility: Compact design simplifies installation and repair. Critical components (seal rings, O-rings, disc, shaft) can be customized in various materials to suit diverse media and temperatures.
Electric Actuation: Enables remote control, precise modulation, and seamless integration into automated systems for efficient operation.
Applications:
Ideal for water plants, power plants, steel (smelting), chemical processing, water source projects, and environmental facilities. Especially suited for pipeline systems where reliable regulation and shut-off of water, fluids, or mild corrosive media are critical.
Quality Assurance:
Constructed from high-grade materials and engineered to international standards, our valve guarantees zero leakage and long-term performance. Each valve is backed by full certifications and material test reports.
Upgrade to intelligent flow control with Heyue electric motorized solution. Contact Heyue to learn more!

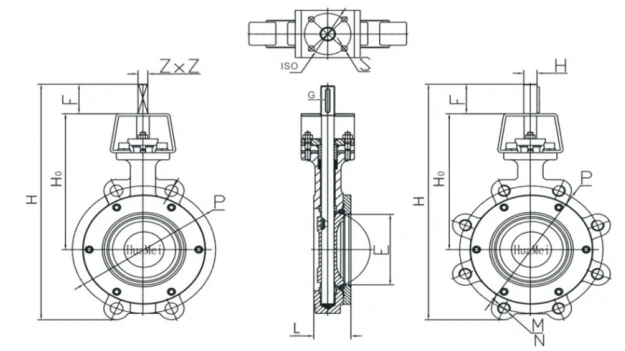

Parameters
|
D372F High Performance Double Offset Wafer Butterfly Valve(ANSI CLASS 150) |
||||||||||
|
|
||||||||||
|
VALVE SIZE |
WAFER H (mm) |
H0 (mm) |
L (mm) |
F (mm) |
Z×Z (H×G) |
M+N (16+N) |
P (mm) |
ISO5211 |
S |
|
|
mm |
ins |
|||||||||
|
50 |
2" |
258 |
193 |
43 |
20 |
11×11 |
16×4 |
120.7 |
F07 |
4×Ø10 |
|
65 |
2.5" |
262 |
193 |
46 |
20 |
11×11 |
16×4 |
130.7 |
F07 |
4×Ø10 |
|
80 |
3" |
294 |
218 |
49 |
20 |
11×11 |
16×4 |
152.4 |
F07 |
4×Ø10 |
|
100 |
4" |
338 |
239 |
52 |
20 |
14×14 |
16×8 |
190.5 |
F07 |
4×Ø10 |
|
125 |
5" |
377 |
263 |
56 |
25 |
17×17 |
20×8 |
215.9 |
F10 |
4×Ø12 |
|
150 |
6" |
402 |
277 |
61 |
25 |
17×17 |
20×8 |
241.3 |
F10 |
4×Ø12 |
|
200 |
8" |
469 |
317 |
64 |
25 |
17×17 |
20×8 |
281.45 |
F10 |
4×Ø12 |
|
250 |
10" |
535 |
348 |
71 |
32 |
22×22 |
24×12 |
366.95 |
F12 |
4×Ø16 |
|
300 |
12" |
625 |
400 |
82 |
45 |
27×27 |
24×12 |
431.8 |
F12 |
4×Ø16 |
|
350 |
14" |
698 |
417 |
92 |
45 |
27×27 |
27×12 |
476.25 |
F14 |
4×Ø18 |
|
400 |
16" |
798 |
476 |
102 |
45 |
27×27 |
30×16 |
539.75 |
F16 |
4×Ø22 |
|
450 |
18" |
864 |
564 |
114 |
50 |
36×36 |
30×16 |
599.85 |
F16 |
4×Ø22 |
|
500 |
20" |
945 |
592 |
127 |
50 |
36×36 |
30×20 |
693.8 |
F16 |
4×Ø22 |
|
600 |
24" |
1074 |
678 |
154 |
65 |
36×36 |
33×20 |
749.3 |
F16 |
4×Ø22 |
|
650 |
26" |
1170 |
708 |
165 |
65 |
46×46 |
33×24 |
806.45 |
F16 |
4×Ø22 |
|
700 |
28" |
1322 |
738 |
165 |
65 |
46×46 |
32×28 |
863.6 |
F16 |
4×Ø22 |
|
750 |
30" |
1302 |
773 |
191 |
100 |
22×80 |
33×28 |
914.4 |
F16 |
4×Ø22 |
|
800 |
32" |
1357 |
796 |
191 |
100 |
22×80 |
39×28 |
977.9 |
F25 |
8×Ø18 |
|
850 |
34" |
1444 |
856 |
197 |
100 |
22×80 |
39×28 |
1028.7 |
F25 |
8×Ø18 |
|
|
36" |
1500 |
925 |
210 |
100 |
22×80 |
39×32 |
1085.85 |
F30 |
8×Ø22 |
|
1000 |
40" |
1634 |
953 |
241 |
110 |
25×105 |
39×36 |
1200.15 |
F30 |
8×Ø22 |
|
1050 |
42" |
1690 |
979 |
241 |
110 |
25×105 |
39×36 |
1257.3 |
F30 |
8×Ø22 |
|
1200 |
48" |
1897 |
1102 |
254 |
120 |
32×115 |
39×44 |
1422.4 |
F30 |
8×Ø22 |
|
1350 |
54" |
2100 |
1209 |
273 |
130 |
36×140 |
45×44 |
1593.85 |
F35 |
8×Ø33 |
900|
D342F High Performance Double Offset Flanged Butterfly Valve |
||||||||
|
|
||||||||
|
(1)ANSI CLASS 150 |
||||||||
|
VALVE SIZE |
H (mm) |
H0 (mm) |
L (Short, mm) |
F (mm) |
Z×Z (H×G) |
ISO5211 |
S |
|
|
mm |
ins |
|||||||
|
80 |
3" |
323 |
228 |
114 |
20 |
11×11 |
F07 |
4*10 |
|
100 |
4" |
372 |
258 |
127 |
20 |
14×14 |
F07 |
4*10 |
|
125 |
5" |
404 |
277 |
140 |
20 |
17×17 |
F10 |
4*12 |
|
150 |
6" |
431 |
291 |
140 |
20 |
17×17 |
F10 |
4*12 |
|
200 |
8" |
504 |
332.5 |
152 |
25 |
17×17 |
F10 |
4*12 |
|
250 |
10" |
551 |
348 |
165 |
25 |
22×22 |
F12 |
4*14 |
|
300 |
12" |
642 |
400 |
178 |
25 |
27×27 |
F12 |
4*14 |
|
350 |
14" |
738 |
461 |
190 |
32 |
27×27 |
F14 |
4*18 |
|
400 |
16" |
771 |
473 |
216 |
45 |
27×27 |
F16 |
4*22 |
|
450 |
18" |
906 |
588 |
222 |
45 |
36×36 |
F16 |
4*22 |
|
500 |
20" |
967 |
618 |
229 |
45 |
36×36 |
F16 |
4*22 |
|
600 |
24" |
1097 |
691 |
267 |
50 |
46×46 |
F16 |
4*22 |
|
750 |
30" |
1293 |
801 |
318 |
50 |
80×22 |
F16 |
4*22 |
|
900 |
36" |
1509 |
925 |
330 |
65 |
80×22 |
F30 |
8*22 |
|
(2)ANSI CLASS 300 |
||||||||
|
VALVE SIZE |
A (mm) |
B (mm) |
L (mm) |
F (mm) |
Z×Z (H×G) |
R |
S |
|
|
mm |
ins |
|||||||
|
80 |
3" |
323 |
228 |
180 |
20 |
14×14 |
F07 |
4*10 |
|
100 |
4" |
385 |
258 |
190 |
25 |
17×17 |
F07 |
4*10 |
|
125 |
5" |
418 |
277 |
200 |
25 |
17×17 |
F10 |
4*12 |
|
150 |
6" |
453 |
295 |
210 |
25 |
17×17 |
F10 |
4*12 |
|
200 |
8" |
520 |
330 |
230 |
32 |
22×22 |
F10 |
4*12 |
|
250 |
10" |
583 |
361 |
250 |
45 |
27×27 |
F12 |
4*16 |
|
300 |
12" |
694 |
433 |
270 |
45 |
27×27 |
F12 |
4*16 |
|
350 |
14" |
759 |
467 |
290 |
45 |
27×27 |
F14 |
4*18 |
|
400 |
16" |
910 |
586 |
310 |
50 |
36×36 |
F16 |
4*22 |
|
450 |
18" |
981 |
626 |
330 |
50 |
36×36 |
F16 |
4*22 |
|
500 |
20" |
1349 |
674 |
350 |
50 |
36×36 |
F16 |
4*22 |
|
600 |
24" |
1238 |
780 |
390 |
65 |
46×46 |
F16 |
4*22 |
